SOMA Smart Shades Replacement Gear Wheel

SOMA Smart Shades Replacement Gear Wheel

In Stock Free Shipping Free Returns
$5

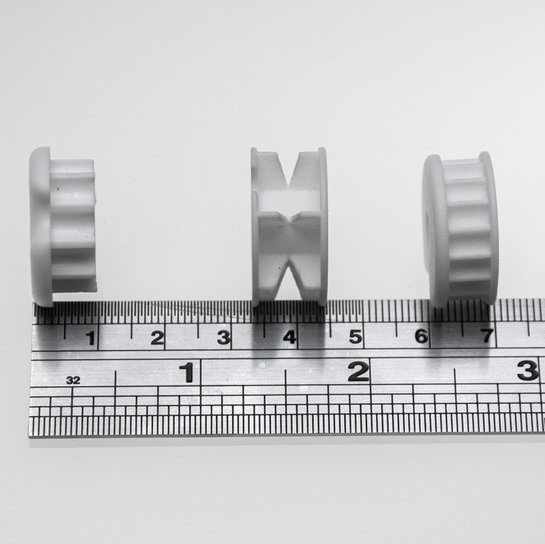

1 x replacement gear wheel for SOMA Smart Shades.

Chain/cord type

SOMA Smart Shades is compatible with various endless loop chains and cords. Find out if your blind has a beaded chain or a plain cord. In the case of a beaded chain, find out how many beads/balls there are per inch (2.5 cm). Below measurements are approximate, choose the one that suits the best. When in doubt, contact our support, we are happy to assist.

Endless loop beaded chain - standard beads

Most of the blinds with a beaded chain have balls which diameter is approx. 3/16 in / 4.5 mm. This means there are around 4 balls per 1 in / 2.5 cm.

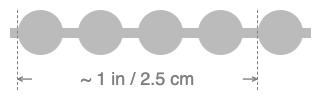

Beaded chain with standard beads

There is also a variation which has extra spacing between the balls. The 3rd ball starts around 1 in / 2.5 cm.

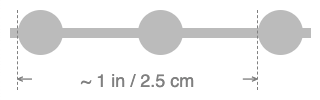

Beaded chain with standard beads with extra spacing

Endless loop beaded chain - large beads

Ball diameter is approx. 1/4 in / 6.3 mm. This means that there are around 2.5 balls and 2 spacings per 1 in / 2.5 cm.

Beaded chain with large beads

Endless loop beaded chain - small beads

Ball diameter is approx. 1/8 in / 3.2 mm. This means that there are around 6 balls per 1 in / 2.5 cm.

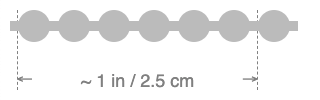

Beaded chain with small beads

Endless loop non-beaded cord

Plain continuous cord loop without beads.
